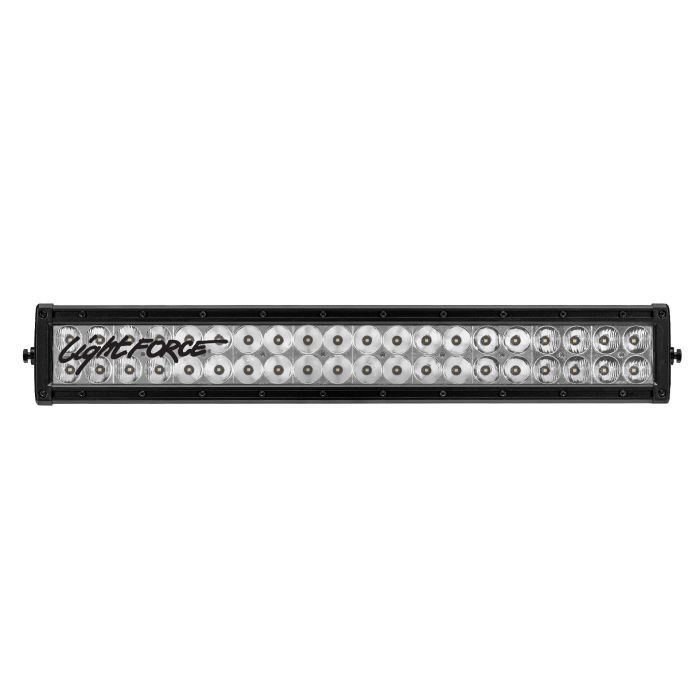

Lightforce D20XP 20" 10-36VDC Dual Row LED Light Bar 5000K

Special Price $645.00 Regular Price $660.00
Out of stock
SKU
D20XP

Lightforce D20XP 20" 10-36VDC Dual Row LED Light Bar 5000K

Lightforce D20XP 20" 10-36VDC Dual Row LED Light Bar 5000K

Lightforce legendary performance is now available in our new black-bezel LED Bars, extruded from 6063 aluminium and finished in a UV-resistant anodised coating to face the world's harshest conditions.

KIT INCLUSIONS

  • 1 x Lightforce Dual Row LED Bar
  • 1 x Full wiring harness (including relay and switch connector)
  • 2 x Stainless steel brackets and hardware
  • 1 x User instructions

Lightforce performance is now available in our new black-bezel LED Bars, extruded from aluminium and finished in a UV resistant anodised coating to face the harshest conditions in the world.

The Lightforce LED Bar range is rugged and impact resistant, featuring a hard-coated polycarbonate lens for durability and a waterproof rating to IP69K. The LED Bar range utilises high output European LEDs tuned within the reflectors to produce unparalleled performance in their class. With multiple mounting options available and complete with a waterproof Deutsch connector – including full wiring harness – the Lightforce LED Bar range delivers powerful performance in a simple package.

FEATURES

  • Extruded aluminium body with black anodized coating
  • IP69K rated to protect against moisture / contaminant ingress
  • Hard coated, scratch and high impact resistant polycarbonate lens
  • Custom moulded strain relief connector fitted to military spec cable
  • Genuine Gore® waterproof membrane with mechanical seal
  • Over, under and reverse voltage protection
  • Pulse width modulation thermal management circuitry
  • Protected against electromagnetic and radio frequency interference (RFI)
  • Stainless steel brackets and mounting hardware
  • Comprehensive wiring harness
  • Broad operating voltage range of 10 ~ 36 volts
  • Input cable length: 450mm (17.72″).Wiring Harness Length 2.5m (92.43″)
  • Deutsch waterproof connectors
  • RoHS certified
  • 3 Year warranty.

PRODUCT SPECIFICATION

More Information
Distance: 1 lux at 569m
Distance: 0.25 lux at 1138m
Effective Lumens 7472
Raw Lumens 14,080
Colour Temperature 5000K
Current Draw 10.8Amps @ 13.2V
Voltage Range 10V - 36V DC
Wattage 176W
Ingress Protection Rating IP69K
Weight 3.17kg
More Information
Manufacturer Lightforce
