Lightforce CB12VBM 12V Compact Battery Monitor

Special Price $22.00 Regular Price $24.95
In stock
Only 1 left
SKU
CB12VBM
Lightforce CB12VBM 12V Compact Battery Monitor is available to buy in increments of 1
Lightforce CB12VBM 12V Compact Battery Monitor

Lightforce CB12VBM 12V Compact Battery Monitor

Battery monitor to suit various 12 volt batteries.

KIT INCLUSIONS

  • 1 x Specified 12V compact battery monitor

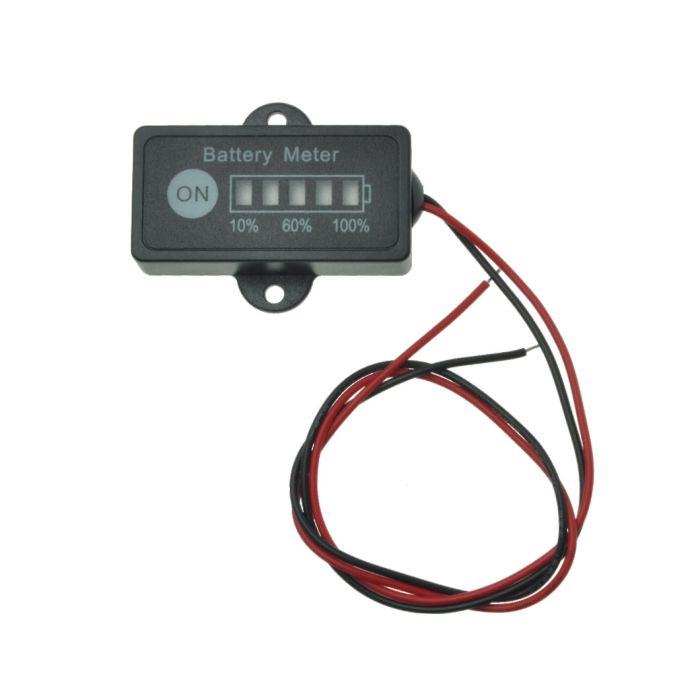

The CB12VBM is a compact battery monitor suitable for monitoring all 12 volt lead acid batteries both sealed and unsealed, AGM and Gel cell with 10 levels of measure.

Providing fast and convenient reference to your batteries reserve capacity.

FEATURES

LED Level indication:

  • 100% Capacity all 5 LED's illuminated
  • 90% Capacity 4 LED's illuminated, 1 flashing
  • 80% Capacity 4 LED's illuminated
  • 70% Capacity 3 LED's illuminated, 1 flashing
  • 60% Capacity 3 LED's illuminated
  • 50% Capacity 2 LED's illuminated, 1 flashing
  • 40% Capacity 2 LED's illuminated
  • 30% Capacity 1 LED's illuminated, 1 flashing
  • 20% Capacity 1 LED's illuminated
  • 10% Capacity 1 LED flashing

SPECIFICATIONS

  • MCU controlled for precise measurement of battery capacity
  • Suitable for all types of 12 volt lead-acid batteries, SLA, AGM and Gel cell
  • 5 LED status indicators with 10 levels of measure
  • Reverse polarity protection
  • Low standby current <0.5 mA with auto off function
  • 3M adhesive backing for easy placement
  • Simple two wire connection
  • Cable length 280mm
  • Operating temperature -10~+50℃
  • Storage temperature -40~+70℃
  • Compact size 42mm (L) x 22mm (W) x 11mm (H)
  • Weight 10 grams
More Information
Manufacturer Lightforce
Barcode 9335712027191
